relay_mode.c File Reference

Detailed Description

Relay Mode Example Application.

Note

It is assumed that you have followed the steps in the Getting Started guide and are therefore familiar with how to build, flash, and monitor an application using the MM-IoT-SDK framework.

Definition in file relay_mode.c.

#include <string.h>
#include "mmwlan.h"
#include "mmconfig.h"
#include "mmosal.h"
#include "mmutils.h"
#include "mm_app_common.h"
#include "mm_app_loadconfig.h"
#include "mmlog.h"

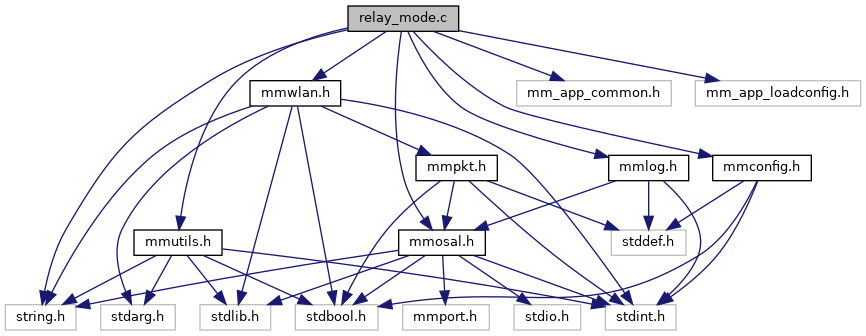

Include dependency graph for relay_mode.c:

Go to the source code of this file.

Macros
#define	AP_SSID   MorseMicroIoT
	SSID of the AP. More...
#define	SAE_PASSPHRASE   12345678
	Passphrase of the AP (ignored if security type is not SAE). More...
#define	SECURITY_TYPE   MMWLAN_SAE
	Security type (. More...
#define	PMF_MODE   MMWLAN_PMF_REQUIRED
	Protected Management Frames (PMF) mode (. More...
#define	MAX_STAS   MMWLAN_DEFAULT_AP_MAX_STAS
	The maximum number of stations that can connect to the AP. More...
#define	_STRINGIFY(x)   #x
	Stringify macro. More...
#define	STRINGIFY(x)   _STRINGIFY(x)
	Convert the content of the given macro to a string. More...

Functions
static char *	mmwlan_ap_sta_state_to_str (enum mmwlan_ap_sta_state state)
	Function to convert mmwlan_ap_sta_state enumeration to a human readable string. More...
static void	handle_ap_sta_status (const struct mmwlan_ap_sta_status *sta_status, void *arg)
	Handler for AP STA Status callback. More...
void	load_mmwlan_ap_args (struct mmwlan_ap_args *ap_args)
	Loads the provided structure with initialization parameters read from config store. More...
void	app_init (void)
	Main entry point to the application. More...

Variables
uint32_t	opaque_argument_value
	A throw away variable for checking that the opaque argument is correct. More...

Macro Definition Documentation

_STRINGIFY

#define _STRINGIFY

(

x

)

#x

Stringify macro.

Do not use directly; use STRINGIFY().

Definition at line 64 of file relay_mode.c.

AP_SSID

#define AP_SSID   MorseMicroIoT

SSID of the AP.

(Do not quote; it will be stringified.)

Definition at line 34 of file relay_mode.c.

MAX_STAS

#define MAX_STAS   MMWLAN_DEFAULT_AP_MAX_STAS

The maximum number of stations that can connect to the AP.

Must not be greater than MMWLAN_AP_MAX_STAS_LIMIT.

Definition at line 60 of file relay_mode.c.

PMF_MODE

#define PMF_MODE   MMWLAN_PMF_REQUIRED

Protected Management Frames (PMF) mode (.

See also

mmwlan_pmf_mode).

Definition at line 52 of file relay_mode.c.

SAE_PASSPHRASE

#define SAE_PASSPHRASE   12345678

Passphrase of the AP (ignored if security type is not SAE).

(Do not quote; it will be stringified.)

Definition at line 40 of file relay_mode.c.

SECURITY_TYPE

#define SECURITY_TYPE   MMWLAN_SAE

Security type (.

See also

mmwlan_security_type).

Definition at line 46 of file relay_mode.c.

STRINGIFY

#define STRINGIFY

(

x

)

_STRINGIFY(x)

Convert the content of the given macro to a string.

Definition at line 66 of file relay_mode.c.

Function Documentation

app_init()

void app_init

(

void

)

Main entry point to the application.

This will be invoked in a thread once operating system and hardware initialization has completed. It may return, but it does not have to.

Definition at line 220 of file relay_mode.c.

handle_ap_sta_status()

static void handle_ap_sta_status ( const struct mmwlan_ap_sta_status *  sta_status, void *  arg  )

static

Handler for AP STA Status callback.

Parameters

sta_status	STA status information.
arg	Opaque argument that was provided when the callback was registered.

Definition at line 104 of file relay_mode.c.

load_mmwlan_ap_args()

void load_mmwlan_ap_args

(

struct mmwlan_ap_args *

ap_args

)

Loads the provided structure with initialization parameters read from config store.

If a specific parameter is not found then default values are used. Use this function to load defaults before calling mmwlan_ap_enable().

Parameters

ap_args

A pointer to the mmwlan_ap_args to return the settings in.

Definition at line 126 of file relay_mode.c.

mmwlan_ap_sta_state_to_str()

static char * mmwlan_ap_sta_state_to_str ( enum mmwlan_ap_sta_state  state )

static

Function to convert mmwlan_ap_sta_state enumeration to a human readable string.

Parameters

state

State enum to convert

Returns

sting representation of the enumeration.

Definition at line 78 of file relay_mode.c.

Variable Documentation

opaque_argument_value

uint32_t opaque_argument_value

A throw away variable for checking that the opaque argument is correct.

Definition at line 69 of file relay_mode.c.
