Detailed Description

AP Example Application.

Note: It is assumed that you have followed the steps in the Getting Started guide and are therefore familiar with how to build, flash, and monitor an application using the MM-IoT-SDK framework.

Definition in file ap_mode.c.

#include <string.h>
#include "mmconfig.h"
#include "mmosal.h"
#include "mmutils.h"
#include "mm_app_common.h"
#include "mm_app_loadconfig.h"
#include "mmlog.h"

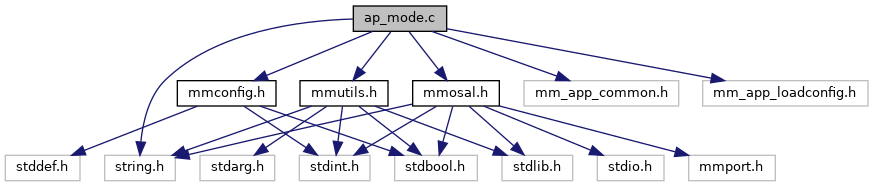

Include dependency graph for ap_mode.c:

Go to the source code of this file.

Macros
#define	STATIC_LOCAL_IP "192.168.1.1"
	Statically configured IP address. More...

#define	STATIC_GATEWAY "192.168.1.1"
	Statically configured gateway address. More...

#define	STATIC_NETMASK "255.255.255.0"
	Statically configured netmask. More...

#define	AP_SSID MorseMicroIoT
	SSID of the AP. More...

#define	SAE_PASSPHRASE 12345678
	Passphrase of the AP (ignored if security type is not SAE). More...

#define	SECURITY_TYPE MMWLAN_SAE
	Security type (. More...

#define	PMF_MODE MMWLAN_PMF_REQUIRED
	Protected Management Frames (PMF) mode (. More...

#define	OP_CLASS (71) /* US, 8 MHz */
	Operating Class to use for AP. More...

#define	S1G_CHANNEL (44) /* US, 8 MHz */
	S1G Channel to use for AP. More...

#define	PRIMARY_BW_MHZ (0)
	Primary Bandwidth to use for AP. More...

#define	PRIMARY_1MHZ_CHANNEL_INDEX (3)
	Primary 1 MHz Channel Index to use for AP. More...

#define	MAX_STAS MMWLAN_DEFAULT_AP_MAX_STAS
	The maximum number of stations that can connect to the AP. More...

#define	_STRINGIFY(x) #x
	Stringify macro. More...

#define	STRINGIFY(x) _STRINGIFY(x)
	Convert the content of the given macro to a string. More...

Functions
static char *	mmwlan_ap_sta_state_to_str (enum mmwlan_ap_sta_state state)
	Function to convert `mmwlan_ap_sta_state` enumeration to a human readable string. More...

static void	handle_ap_sta_status (const struct mmwlan_ap_sta_status sta_status, void arg)
	Handler for AP STA Status callback. More...

static void	load_ap_mmipal_init_args (struct mmipal_init_args *args)
	Loads the provided structure with initialization parameters read from config store. More...

void	load_mmwlan_ap_args (struct mmwlan_ap_args *ap_args)
	Loads the provided structure with initialization parameters read from config store. More...

static void	load_mmwlan_settings_ap (void)
	Loads various WLAN AP specific settings from config store and applies them. More...

static void	link_status_callback (const struct mmipal_link_status *link_status)
	Link status callback. More...

void	app_init (void)
	Main entry point to the application. More...

Variables
uint32_t	opaque_argument_value
	A throw away variable for checking that the opaque argument is correct. More...

Macro Definition Documentation

◆ _STRINGIFY

#define _STRINGIFY ( x ) #x

Stringify macro.

Do not use directly; use STRINGIFY().

Definition at line 121 of file ap_mode.c.

◆ AP_SSID

#define AP_SSID MorseMicroIoT

SSID of the AP.

(Do not quote; it will be stringified.)

Definition at line 52 of file ap_mode.c.

◆ MAX_STAS

#define MAX_STAS MMWLAN_DEFAULT_AP_MAX_STAS

The maximum number of stations that can connect to the AP.

Must not be greater than MMWLAN_AP_MAX_STAS_LIMIT.

Definition at line 117 of file ap_mode.c.

◆ OP_CLASS

#define OP_CLASS (71) /* US, 8 MHz */

Operating Class to use for AP.

This together with S1G_CHANNEL must correspond to a channel in the regulatory database.

Definition at line 84 of file ap_mode.c.

◆ PMF_MODE

#define PMF_MODE MMWLAN_PMF_REQUIRED

Protected Management Frames (PMF) mode (.

See also: mmwlan_pmf_mode).

Definition at line 70 of file ap_mode.c.

◆ PRIMARY_1MHZ_CHANNEL_INDEX

#define PRIMARY_1MHZ_CHANNEL_INDEX (3)

Primary 1 MHz Channel Index to use for AP.

Definition at line 109 of file ap_mode.c.

◆ PRIMARY_BW_MHZ

#define PRIMARY_BW_MHZ (0)

Primary Bandwidth to use for AP.

Valid values:

0 (auto)
1
2

Definition at line 104 of file ap_mode.c.

◆ S1G_CHANNEL

#define S1G_CHANNEL (44) /* US, 8 MHz */

S1G Channel to use for AP.

This together with OP_CLASS must correspond to a channel in the regulatory database.

Definition at line 92 of file ap_mode.c.

◆ SAE_PASSPHRASE

#define SAE_PASSPHRASE 12345678

Passphrase of the AP (ignored if security type is not SAE).

(Do not quote; it will be stringified.)

Definition at line 58 of file ap_mode.c.

◆ SECURITY_TYPE

#define SECURITY_TYPE MMWLAN_SAE

Security type (.

See also: mmwlan_security_type).

Definition at line 64 of file ap_mode.c.

◆ STATIC_GATEWAY

#define STATIC_GATEWAY "192.168.1.1"

Statically configured gateway address.

Definition at line 37 of file ap_mode.c.

◆ STATIC_LOCAL_IP

#define STATIC_LOCAL_IP "192.168.1.1"

Statically configured IP address.

Definition at line 33 of file ap_mode.c.

◆ STATIC_NETMASK

#define STATIC_NETMASK "255.255.255.0"

Statically configured netmask.

Definition at line 41 of file ap_mode.c.

◆ STRINGIFY

#define STRINGIFY ( x ) _STRINGIFY(x)

Convert the content of the given macro to a string.

Definition at line 123 of file ap_mode.c.

Function Documentation

◆ app_init()

void app_init ( void )

Main entry point to the application.

This will be invoked in a thread once operating system and hardware initialization has completed. It may return, but it does not have to.

Definition at line 434 of file ap_mode.c.

◆ handle_ap_sta_status()

static void handle_ap_sta_status	(	const struct mmwlan_ap_sta_status *	sta_status,
		void *	arg
	)

static

Handler for AP STA Status callback.

Parameters

sta_status	STA status information.
arg	Opaque argument that was provided when the callback was registered.

Definition at line 161 of file ap_mode.c.

◆ link_status_callback()

static void link_status_callback ( const struct mmipal_link_status * link_status )

static

Link status callback.

Parameters

link_status Current link status

Definition at line 414 of file ap_mode.c.

◆ load_ap_mmipal_init_args()

static void load_ap_mmipal_init_args ( struct mmipal_init_args * args )

static

Loads the provided structure with initialization parameters read from config store.

If a specific parameter is not found then default values are used. Use this function to load defaults before calling mmipal_init().

Note: This is a AP specific implementation.

Parameters

args	A pointer to the `mmipal_init_args` to return the settings in.

Definition at line 184 of file ap_mode.c.

◆ load_mmwlan_ap_args()

void load_mmwlan_ap_args ( struct mmwlan_ap_args * ap_args )

Loads the provided structure with initialization parameters read from config store.

If a specific parameter is not found then default values are used. Use this function to load defaults before calling mmwlan_ap_enable().

Parameters

ap_args A pointer to the mmwlan_ap_args to return the settings in.

Definition at line 208 of file ap_mode.c.

◆ load_mmwlan_settings_ap()

static void load_mmwlan_settings_ap ( void )

static

Loads various WLAN AP specific settings from config store and applies them.

Definition at line 358 of file ap_mode.c.

◆ mmwlan_ap_sta_state_to_str()

static char * mmwlan_ap_sta_state_to_str ( enum mmwlan_ap_sta_state state )

static

Function to convert mmwlan_ap_sta_state enumeration to a human readable string.

Parameters

state State enum to convert

Returns: sting representation of the enumeration.

Definition at line 135 of file ap_mode.c.

Variable Documentation

◆ opaque_argument_value

uint32_t opaque_argument_value

A throw away variable for checking that the opaque argument is correct.

Definition at line 126 of file ap_mode.c.
